EarAcoustic STA Pro

Specification

Specification	Details
Brand	EarAcoustic
Model	STA PRO
Driver Type	10MM Ultra Clear Analysis Dual Magnetic Composite Diaphragm+6MM Composite Diaphragm Dynamic Coil Unit
Impedance	22Ω
Sensitivity	108 dB
THD	<0.5%
Transient Response Time	<3 milliseconds
Intermodulation distortion	<0.05%
Signal Attenuation	<0.5dB

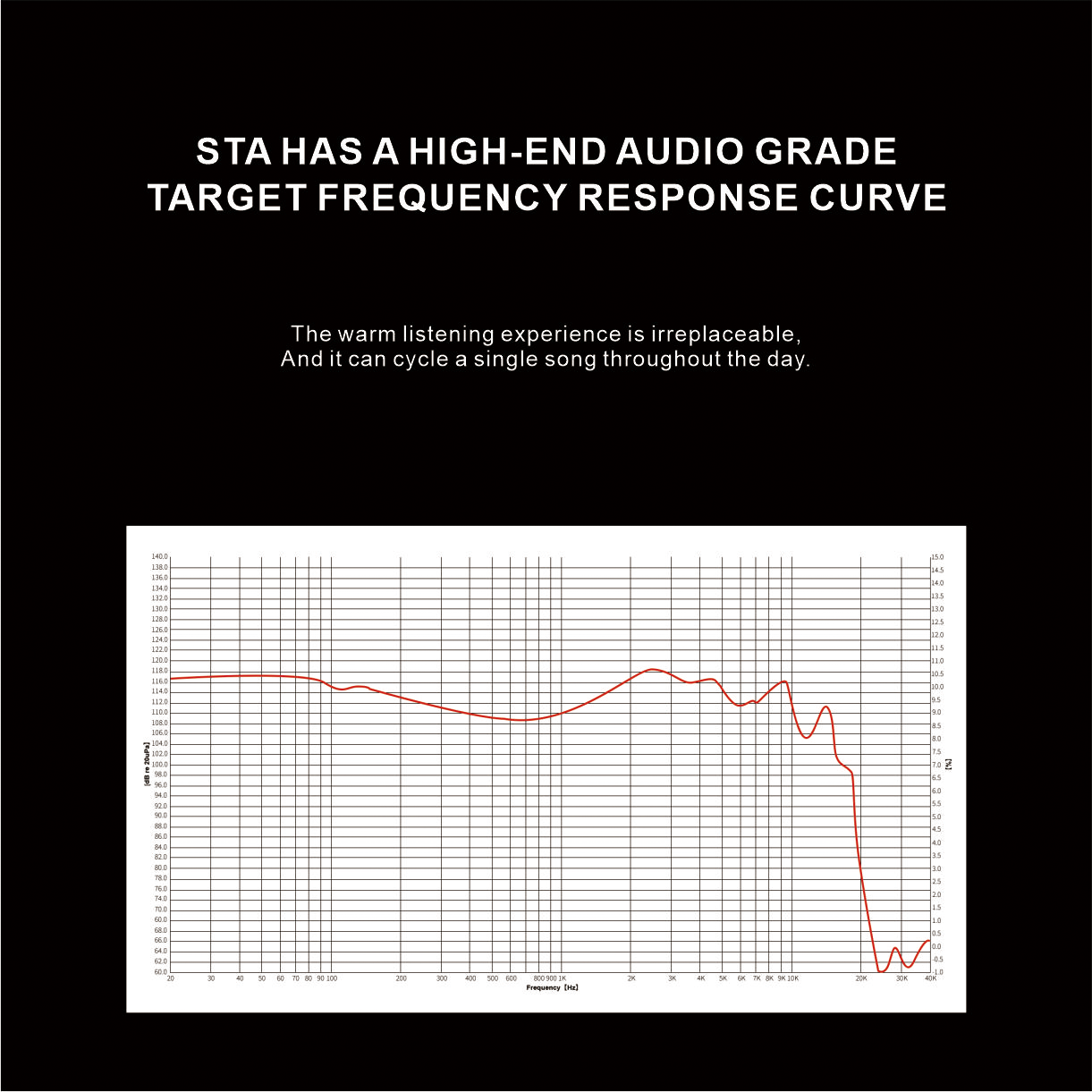

Frequency Response	10Hz - 30kHz
Connectors	0.78 mm 2-Pin
Plug Type	3.5mm
MIC	No

Box Contents

• EarAcoustic STA PRO IEM *1

• STA PRO IEM Cable *1

• Silicone Eartips *6 Pairs

• Premium IEM Case *1

• User Manual *1

Advanced Acoustic Technology for Unmatched Sound

The STA series is powered by dual-core dynamic coil acoustic architecture, featuring double energy for superior sound quality. With Tesla-level magnetic coil technology and a bilateral four-unit design, it delivers remarkable analytical precision and a wide dynamic sound field. The 6mm micro coil handles high and ultra-high frequencies, while the 10mm large dynamic coil excels in mid to low frequencies. With a combination of N50 and N50 magnets, the STA series achieves a magnetic flux of approximately 10,000GS, offering a powerful and energetic audio experience.

Precision Engineering for Unmatched Sound Performance

The STA Pro features a 10mm and 6mm dual polymer composite diaphragm, delivering sharp dynamics and rich detail with a smooth, balanced frequency range. It undergoes hundreds of simulation experiments for optimized acoustic performance.
The STA Pro Ultra combines a 10mm nano ultra-thin graphene diaphragm and a 6mm polymer composite diaphragm, offering powerful dynamics and musical detail. The graphene diaphragm’s elastic modulus is approximately 100 GPa, ensuring ultra-fast response.
The STA Pro MAX uses a 10mm liquid crystal polymer (LCP) diaphragm with a 6mm polymer composite diaphragm, delivering a durable sound with rich musical charm. The LCP diaphragm’s elastic modulus is around 100 GPa.
