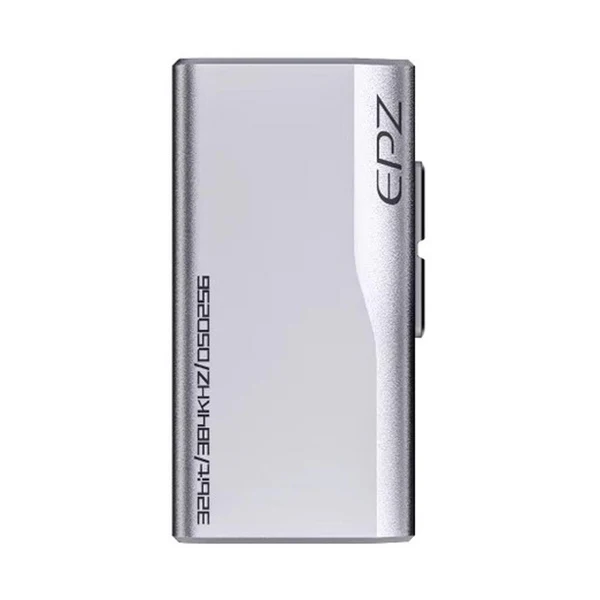

EPZ TP35 Portable DAC & Headphone Amp

Brand EPZ

Ask about this product

0.00 /5.0 (0 reviews)

People are viewing right now

Pricing

৳6,500.00 /pc

0 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Brand EPZ

Products from this brand

Cash on Delivery Available

Description

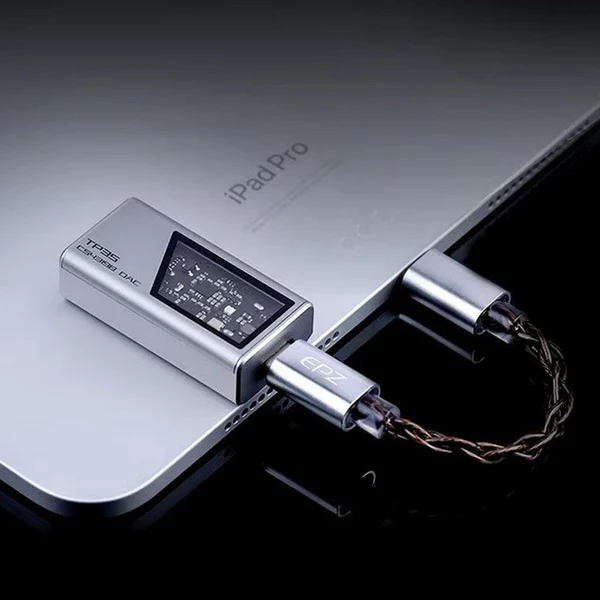

The EPZ TP35 Pro Dongle DAC is a high-performance portable audio solution designed for audiophiles who demand superior sound quality on the go. Featuring dual CS43198X2 decoders, this compact Type-C USB DAC offers a seamless experience with enhanced audio output through its 3.5mm and 4.4mm headphone jacks. It delivers crisp, clear, and rich sound, making it an ideal choice for music lovers, gamers, and content creators. With its sleek design, robust build, and advanced features, the TP35 Pro transforms your mobile audio experience, offering exceptional Hi-Fi sound in a portable, convenient package.

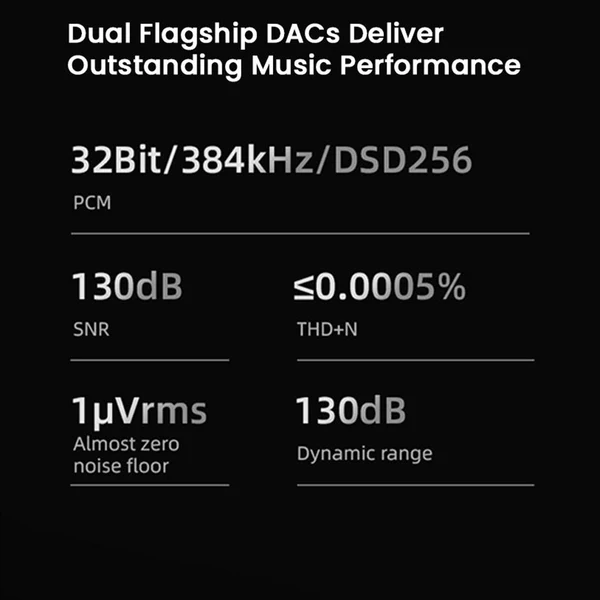

DUAL FLAGSHIP DAC DELIVERS OUTSTANDING MUSIC PERFORMANCE

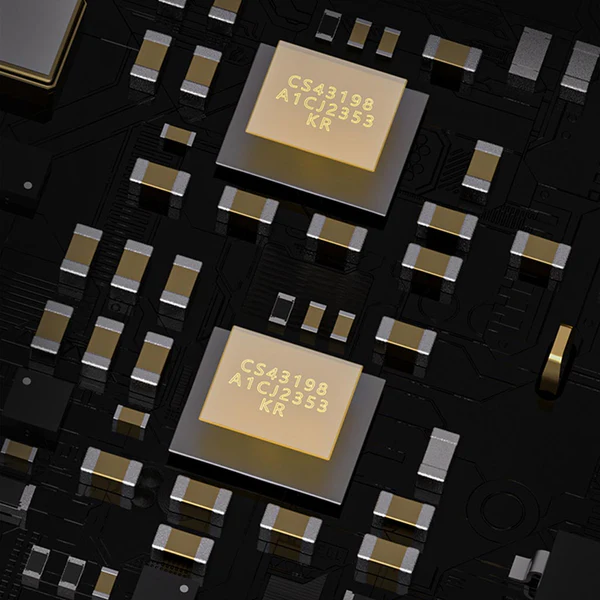

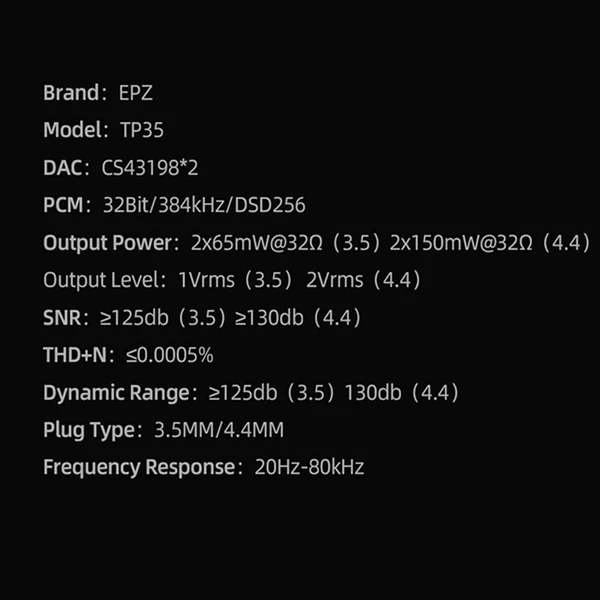

The EPZ TP35 Portable DAC & Amp is equipped with dual CS43198 DAC chips for separate left and right channel decoding, reducing interference and enhancing audio fidelity. Supporting up to 32-bit/384kHz PCM and DSD256, it delivers high-resolution sound with an SNR of 130dB and an ultra-low noise floor. Its balanced output power of 2x150mW@32Ω ensures powerful, master-quality audio.

DUAL OUTPUT PORTS FOR ENHANCED AUDIO FLEXIBILITY AND POWERFUL PERFORMANCE

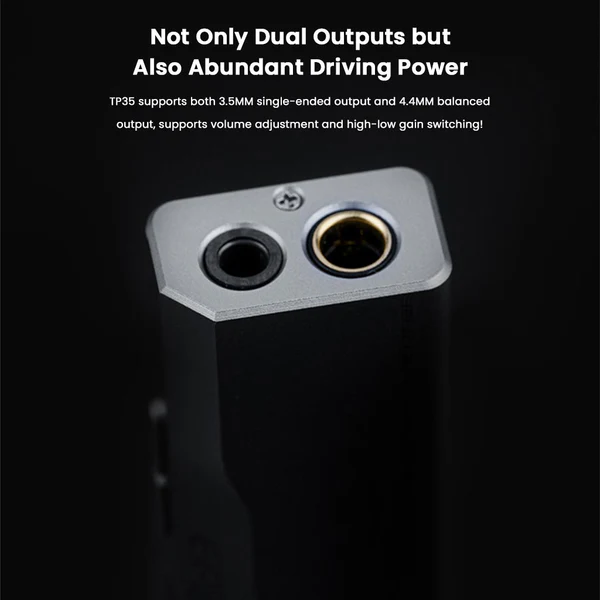

The TP35 Portable DAC & Amp offers flexible, high-quality audio output with both 3.5mm single-ended and 4.4mm balanced connections. It functions as a USB DAC and amp, with features for volume control, track navigation, and gain switching. Delivering powerful output-up to 150mW at 32Ω in balanced mode—it provides clear, dynamic sound. Ideal for on-the-go audiophiles, this compact DAC enhances mobile audio experiences.

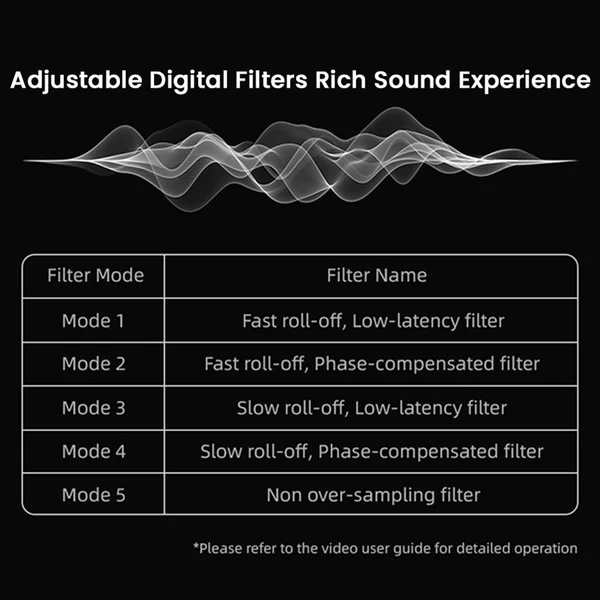

ADJUSTABLE DIGITAL FILTERS FOR A RICH SOUND EXPERIENCE

The DAC features five built-in digital filters, allowing you to tailor your audio to suit your preferences. These filters offer various tonal experiences, providing flexibility for different listening situations:
1. Mode 1: Fast Roll-off, Low-Latency Filter This mode delivers quick sound response with minimal delay, perfect for fast-paced audio.
2. Mode 2: Fast Roll-off, Phase-Compensated Filter A combination of fast roll-off and phase correction, offering a clear and balanced sound.
3. Mode 3: Slow Roll-off, Low-Latency Filter Smoothens the frequency transition while maintaining low latency for seamless audio output.
4. Mode 4: Slow Roll-off, Phase-Compensated Filter Offers a smooth, gradual frequency roll-off with phase compensation for enhanced sound accuracy.
5. Mode 5: Non-Over-Sampling Filter Provides a more natural, analog-like sound without any oversampling, delivering a direct and unprocessed tonal experience.
With these filters, you can easily switch between modes to find the ideal sound for any situation.

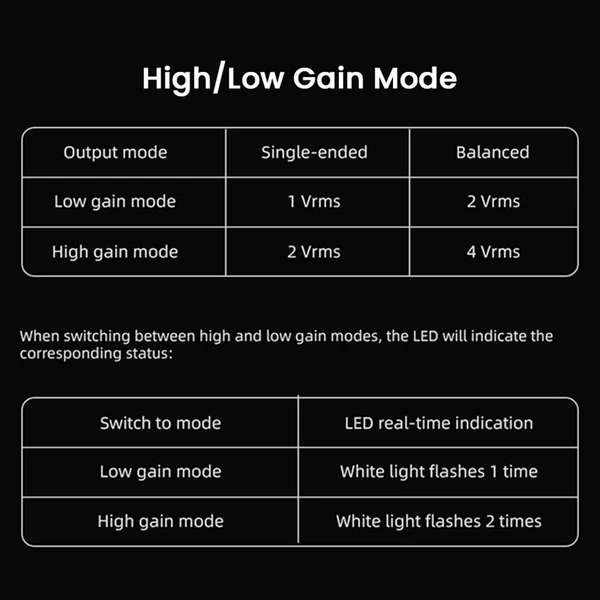

SWITCHING BETWEEN HIGH AND LOW GAIN MODES

You can switch between High and Low Gain modes by pressing the "+" and "-" keys at the same time. If any key is released within 1 second, the mode will change.
Low Gain Mode: Output is 1 Vrms (single-ended) or 2 Vrms (balanced).
High Gain Mode: Output is 2 Vrms (single-ended) or 4 Vrms (balanced).
The LED will flash to show the active mode: one flash for Low Gain and two flashes for High Gain, so you can easily see which mode is selected.

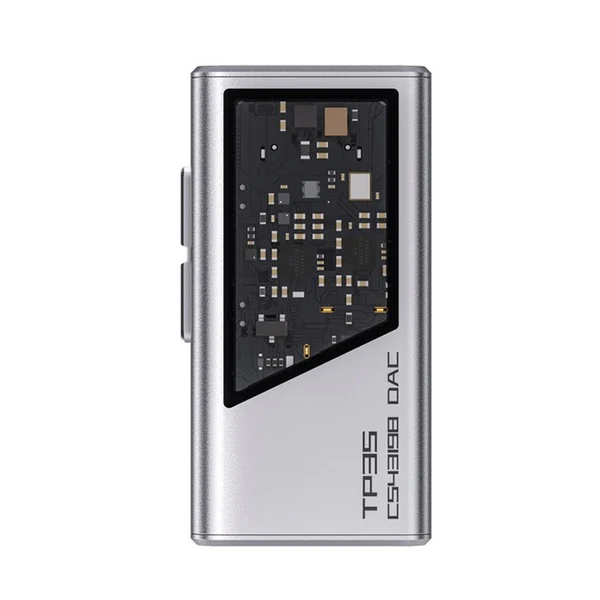

TRANSPARENT WINDOW DESIGN CNC MULTI-PRECISION MACHINING PROCESS

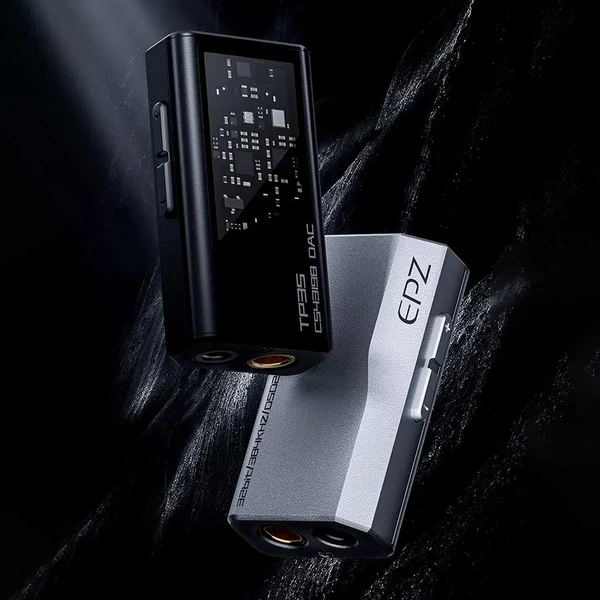

The TP35 features a unique and elegant design with a waistline curve and a transparent window, showcasing its sophisticated aesthetic. Crafted from 7-series aerospace-grade aluminum, the device undergoes a high-precision CNC machining process, ensuring exceptional quality and craftsmanship. This combination of design and advanced manufacturing techniques results in a product that is not only durable but also visually striking, resembling a finely crafted piece of art.
10 Times: CNC composite processing
2 Buttons: Physical operation
8 Stages: High difficulty processes
Windows: Transparent design
Curve: Waistline design
7 Series: Aerospace-grade aluminum material

UAC1.0 GAME MODE

The TP35 features UAC1.0 Game Mode, making it compatible with gaming consoles like the Nintendo Switch and PS5. It serves as a high-quality audio decoder, enhancing your gaming audio experience.

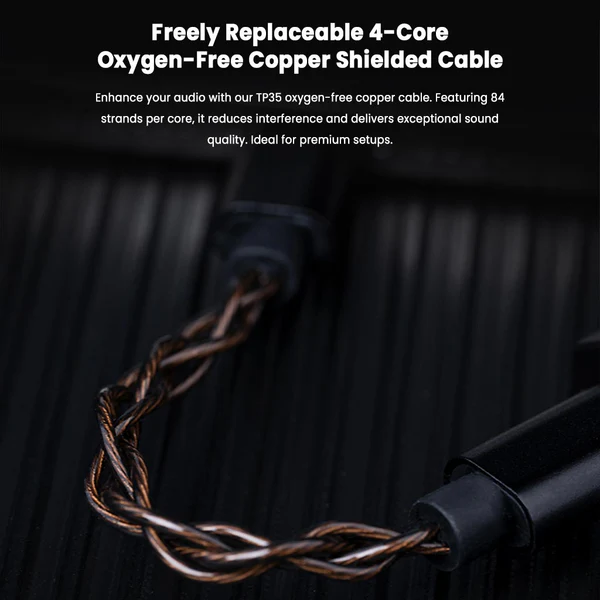

4-CORE OXYGEN-FREE COPPER SHIELDED CABLE

The TP35 comes with a high-purity oxygen-free copper shielded cable, designed for optimal audio performance. Each core is made up of up to 84 strands, ensuring high-quality signal transmission. This cable effectively eliminates external interference, reduces transmission loss, and provides a strong foundation for delivering high-performance sound quality. Additionally, the cable is freely replaceable, offering flexibility for users who want to upgrade or maintain their setup.
