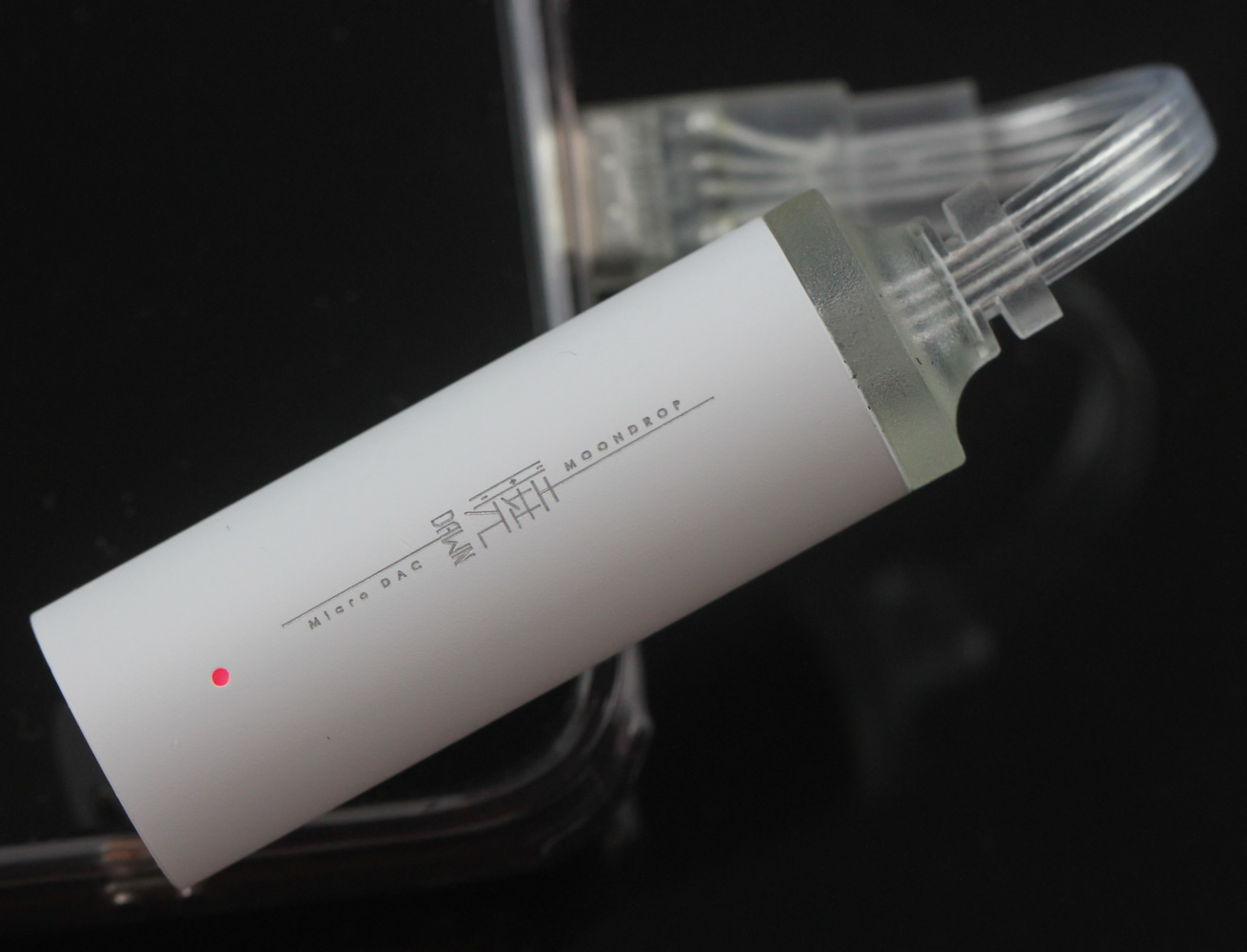

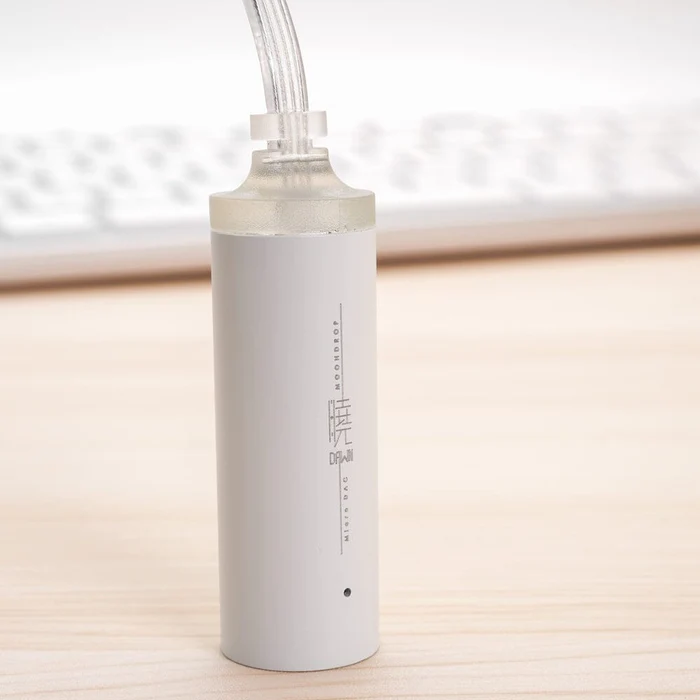

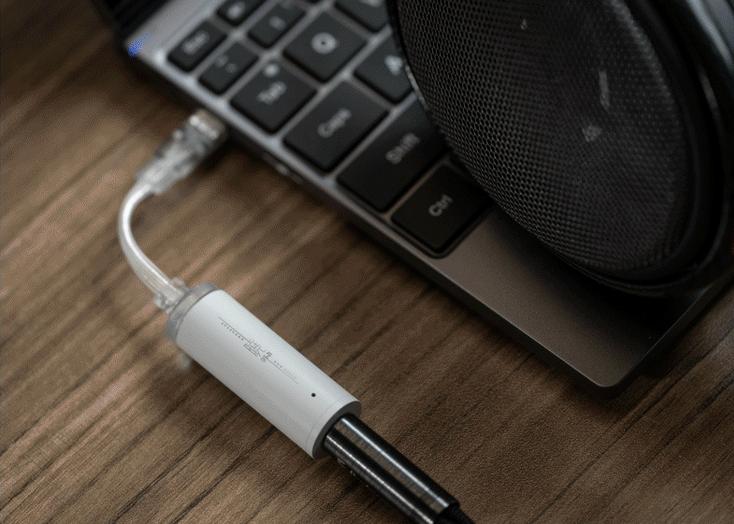

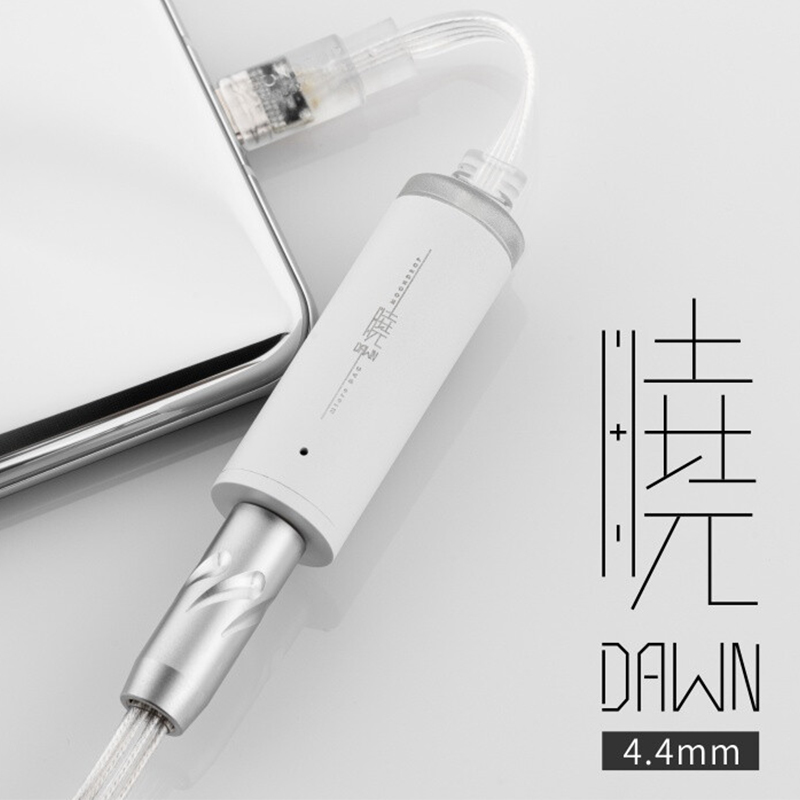

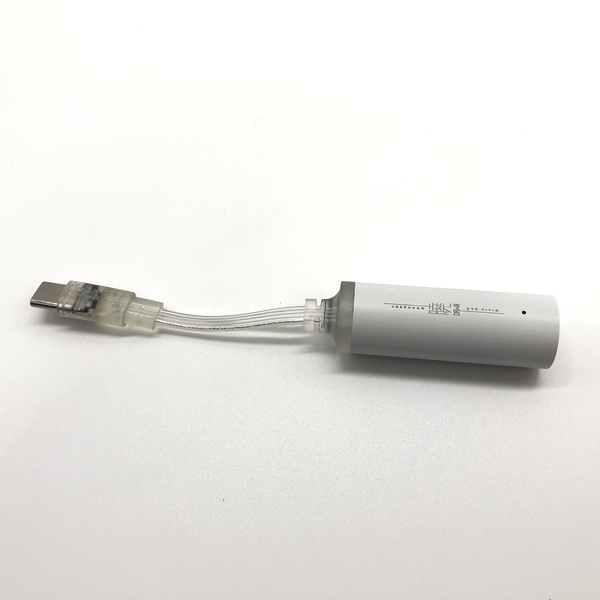

MOONDROP DAWN 4.4 USB DAC/AMP

[DAWN 4.4] Fully balanced high performance DAC/AMP

Weight: 13.7g

Size: 120mm X 16.4mm

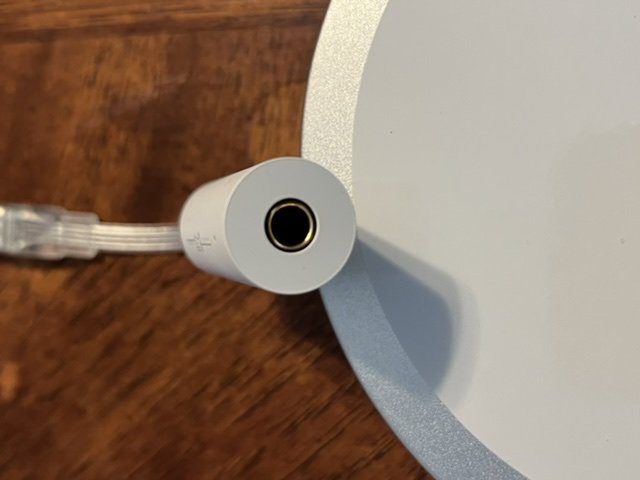

Headphone Jack: 4.4mm balanced

Frequency response range: 7Hz-90kHz (-3dB)

Connector: USB Type-C

Background Noise: 1.3uV (AES17 20kHz)

THD+N: 0.00017% (AES 17 20kHz, without load)

SNR: 132dB (AES17 20kHz, A weighted)

Firmware upgrade: support (PC)

Gain: High/Low (software switching)

Line output: 4Vrms (High), 2Vrms (Low)

Maximum output: 230mw @ 32Ω, 54mw @ 300Ω

Features

1. Full-balanced dual CS43131 decoding chip, perform full-balanced decoding through four channels.

2. The maximum output is 4Vrms.

3. A adapter can achieve to extend the compatible mainstream devices.

4. Adopting dual crystal oscillator ensures high-quality digital signals.

5. The maximum dynamic range reach 132dB.

6. The noise floor is as low as 1.3uVrms.

7. The total harmonic distortion is lower than 0.00017%, and the SNR is as high as 117dB.

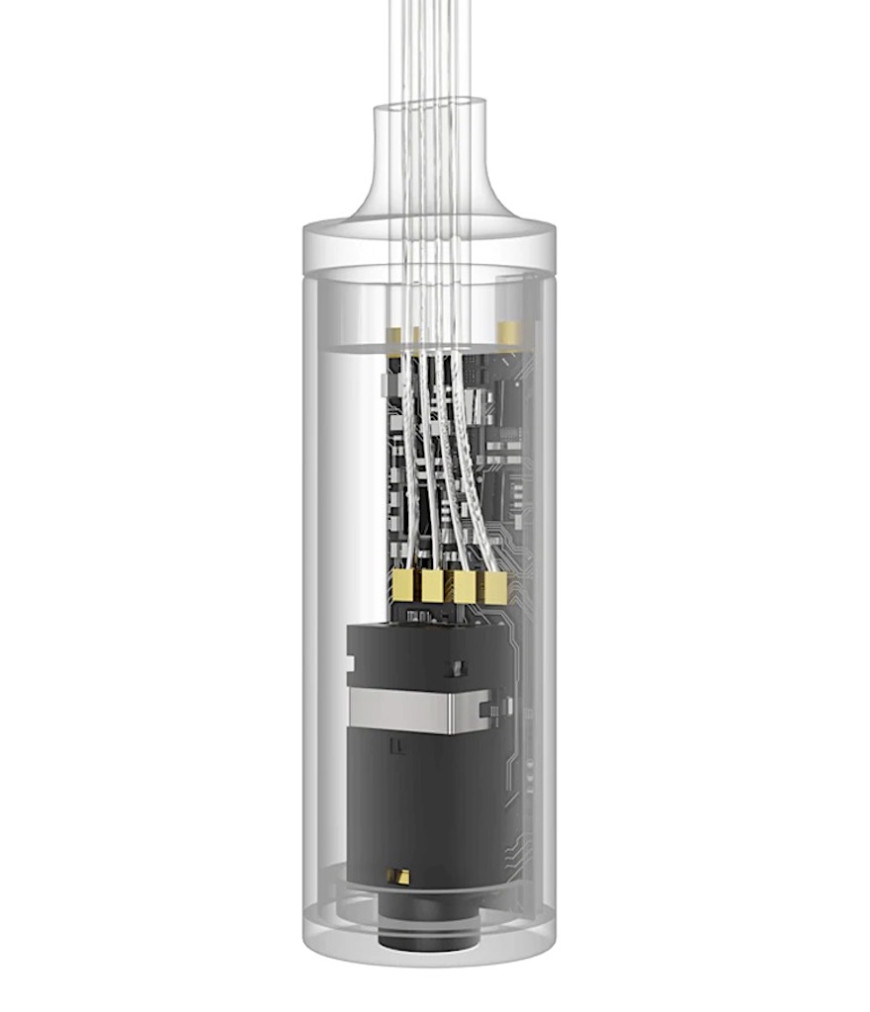

8. Uses the parallel arrangement of high purity copper silver-plated digital signal transmission cable.

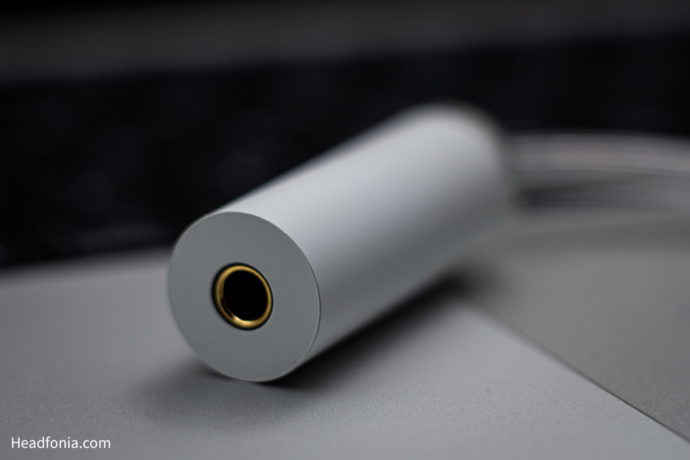

9. The shell adopts aviation aluminum alloy cnc cavity and white matt paint, bringing a delicate surface texture and it can effectively shield external electromagnetic interference.

10. The gain and setting filters can be operated by MOONDROP LINK.

Package

1. [DAWN 4.4] DAC/AMP * 1

2. Type-C to Type-A adapter * 1

3. QC Certificate * 1

4. Manual * 1

5. Warranty Card * 1
