iBasso DC07PRO Quad DAC Dongle | Hi-Res Portable DAC/Amp

iBasso DC07PRO — A Masterpiece in Portable Hi-Res Audio

The iBasso DC07PRO is a high-performance portable DAC and amplifier designed to elevate your mobile listening experience. By combining a flagship quad-DAC array with iBasso's advanced FPGA technology, the DC07PRO delivers studio-grade sound precision in an incredibly compact, DAP-inspired form factor.

• Flagship Quad DAC Array: At its core, the DC07PRO utilizes four Cirrus Logic CS43131 DAC chips. This configuration, optimized by exclusive FPGA algorithms, achieves a remarkable THD+N of -120.2dB for ultra-clean, transparent audio reproduction.

• Powerful & Efficient Drive: Experience a massive output of 430mW + 430mW @ 32Ω via the balanced 4.4mm output. Despite its power, the DC07PRO is highly efficient, consuming as little as 80mA—40% lower than its predecessor—preserving your smartphone’s battery life.

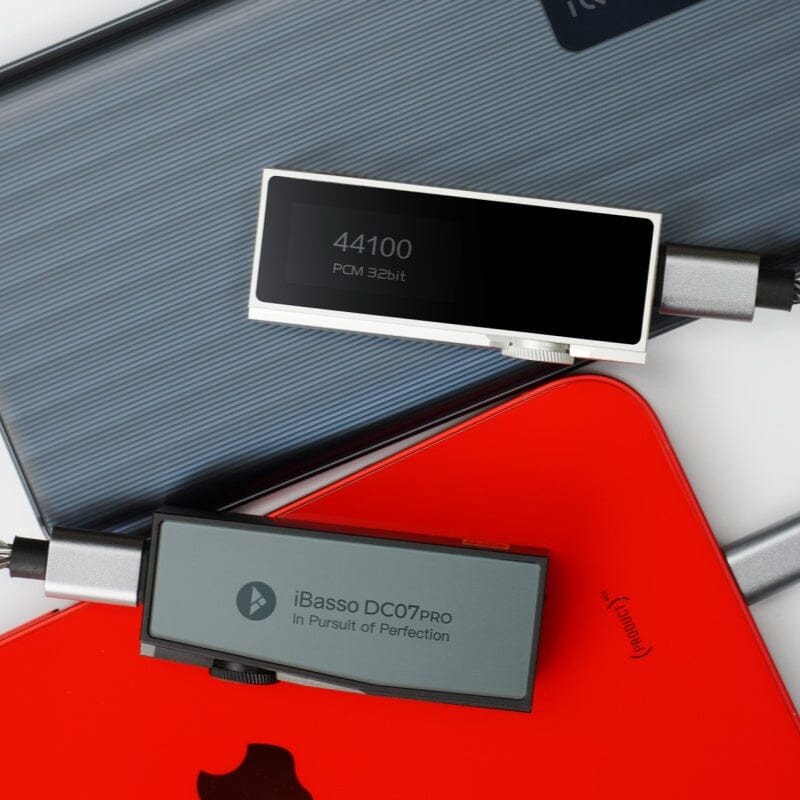

• Intuitive Control & Display: Featuring a 0.96-inch OLED screen and a multi-function side knob, you can easily adjust volume, gain, and digital filters directly on the device. It also supports the iBasso UAC Android app for even deeper customization.

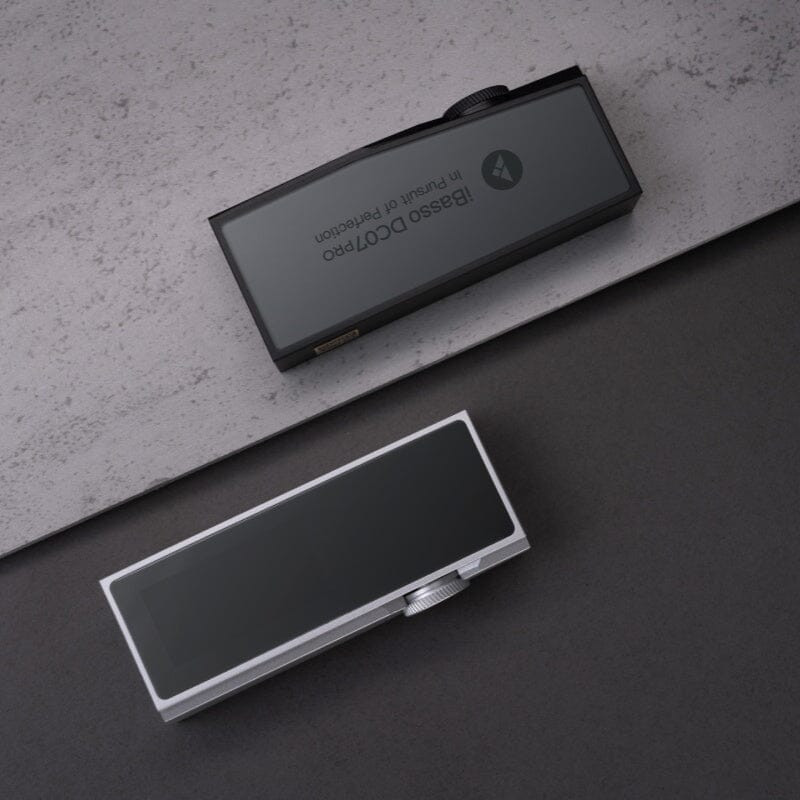

• Precision Engineering: Built with a CNC-machined aluminum body and tempered glass back, the DC07PRO looks as premium as it sounds. The internal FPGA system performs signal regeneration and clock synchronization using a KDS femtosecond oscillator, effectively eliminating jitter.

• Versatile Functionality: Whether you need a balanced 4.4mm connection or a standard 3.5mm single-ended output, this dongle has you covered. It even supports SPDIF output up to 32bit/768kHz, turning your phone into a professional-grade digital transport.

Technical Specifications
