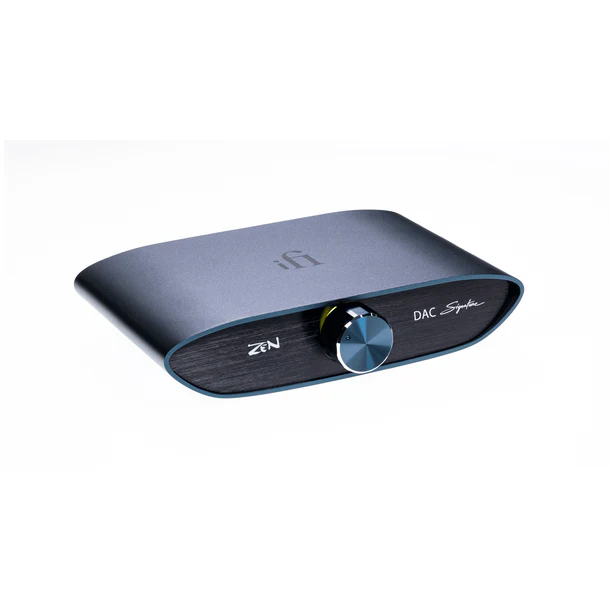

iFi Zen Dac Signature V2 High-resolution DAC

The iFi ZEN DAC Signature V2 is a DAC/preamp featuring a Burr Brown DAC chip, an XMOS 16-Core processor, and support for PCM (384kHz), DSD256, and MQA (decoder/renderer) audio formats. It offers balanced 4.4mm and unbalanced RCA outputs, with a maximum output of 6.2V (balanced) and 2V (unbalanced). The device also has a weight of 505g (1.11 lbs), dimensions of 158 x 117 x 35 mm, and a pure sound that prioritizes audiophile components and features like a PureWave balanced design.

Key Specifications

DAC Chip: Burr Brown True Native Bit-Perfect DAC.

Digital Engine: XMOS 16-Core chip.

Audio Formats:

PCM: Up to 384kHz.

DSD: Up to DSD256 (11.2 MHz).

DXD: Up to 384kHz.

MQA: Full decoder and renderer.

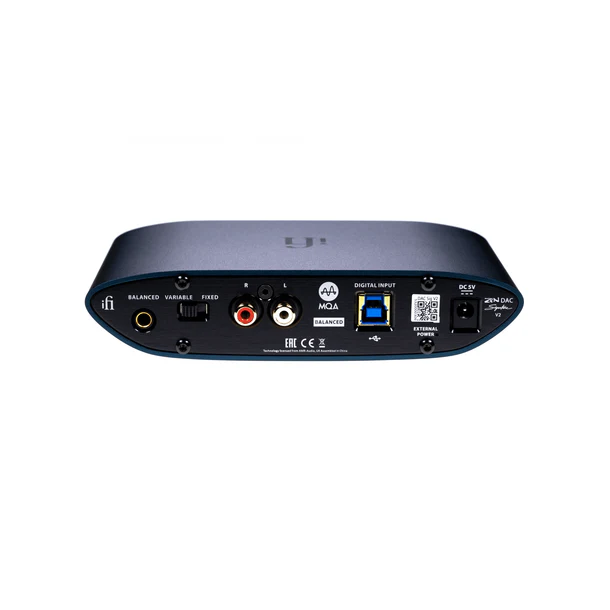

Outputs:

Balanced 4.4mm Pentaconn.

Unbalanced Stereo RCA.

Audio Performance:

Dynamic Range (DNR): >117 dBA (-60 dBFS).

Signal-to-Noise Ratio (SNR): <-117 dBA (0 dBFS).

Total Harmonic Distortion + Noise (THD+N): <0.0011%.

Physical Characteristics:

Dimensions: 158 x 117 x 35 mm.

Weight: 505g (1.11 lbs).

Power Consumption:

No Signal: ~0.5W.

Max Signal: ~2.5W.

Key Features & Improvements

No Headphone Amp: Unlike the standard ZEN DAC, the Signature V2 does not include a headphone output.

PureWave Design: Employs a balanced, symmetrical dual-mono topology with short signal paths for enhanced linearity, low noise, and minimal distortion.

Upgraded Components: Features premium, audiophile-grade components, a more powerful XMOS 16-core chip, and an improved clock circuit over the original ZEN DAC.

Hi-Res Playback: Fully supports True Native® playback of all music formats from MP3 to the highest resolutions.
