JCALLY JM98MAX Headphone Amplifier Decoding CS43198 HIFI Chip Decoding

Features:

• Product Name: Jcally Advanced Portable Ear Amplifier (4 month warranty)
• Product Model: JM98MAX
• Main Chip: CIRRUS LOGICCS43198
• Operational Amplifier Chip: SGM8262
• PCM Sampling Rate: Up to 32-bit/384 kHz
• DSD Sampling Rate: DSD256 (1-bit 11.2 MHz)
• Signal-to-Noise Ratio: ≈ 125dB (32 Ω, A-weighted)
• Crosstalk Suppression: ≈ ​​-70dB (32 Ω)
• Dynamic Range: ≈ 120dB (32 Ω)
• Distortion: ≈ ​​0.0003% (32 Ω)
• Bottom Noise: ≈ 1.3 μV (32 Ω, A-weighted)
• Output Power: ≈ 195mW (32 Ω/THD+N<1%)
• Impedance Output: ≈ 0.65 Ω (32 Ω)
• Function support: Supports track, live streaming, calls, recording, remote control, three-level EQ switching, UAC1.0 and 2.0 switching

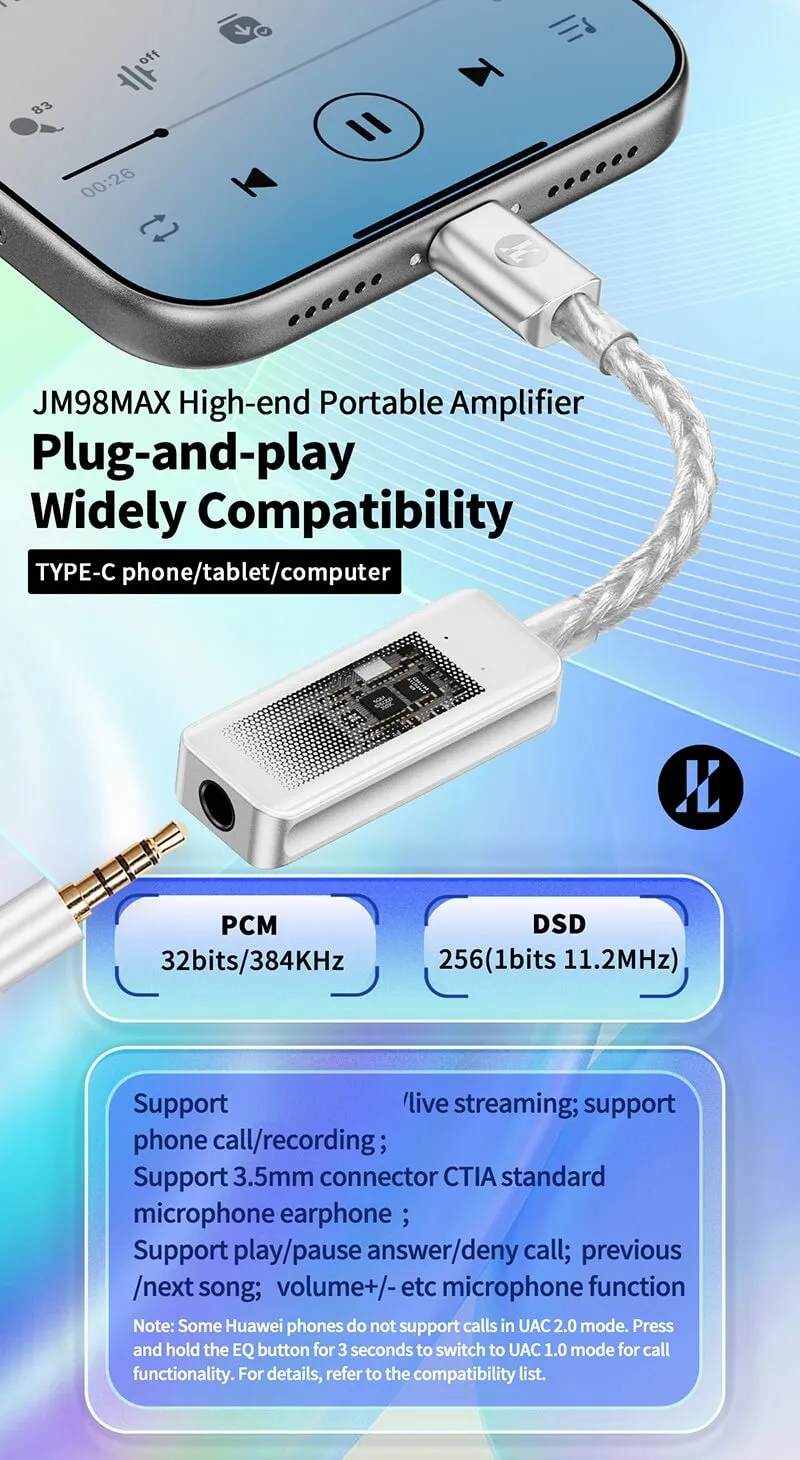

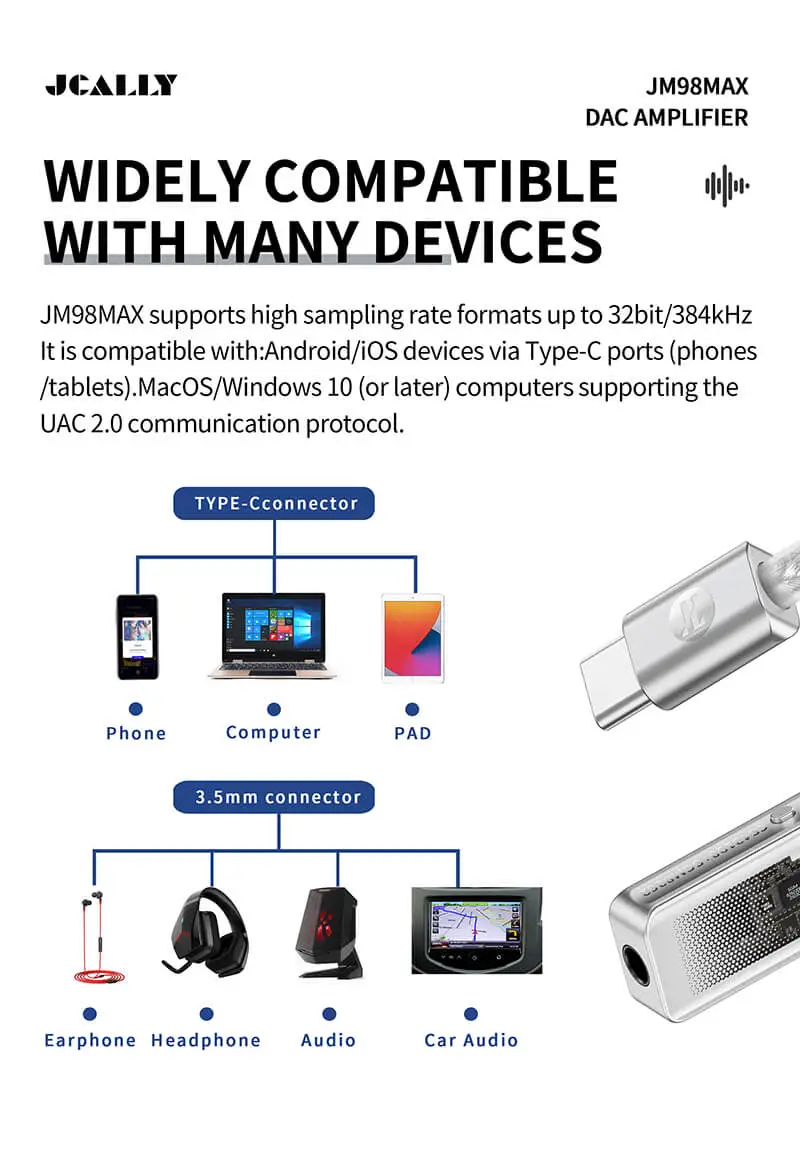

• Application scenario: Supports Type-C smartphones and tablets with Android/iOS and supports computers with Mac/Windows 10 and higher systems; Supports Switch, PS5 game console, Windows 7 computer (needs to switch to UAC1.0 mode)
• Wire material: eight silver-plated copper wires mixed weave 448 core, silver-plated conductor
• Housing material: five-axis CNC surface engraving of aluminum alloy, CNC arc process of tempered glass
• Size: 110 ± 10mm
